The Bar Lands on the Date
A project schedule as a proper Gantt — task rows, a time axis, milestone diamonds, dependency arrows — where each bar actually sits under the dates it claims. Six fields.

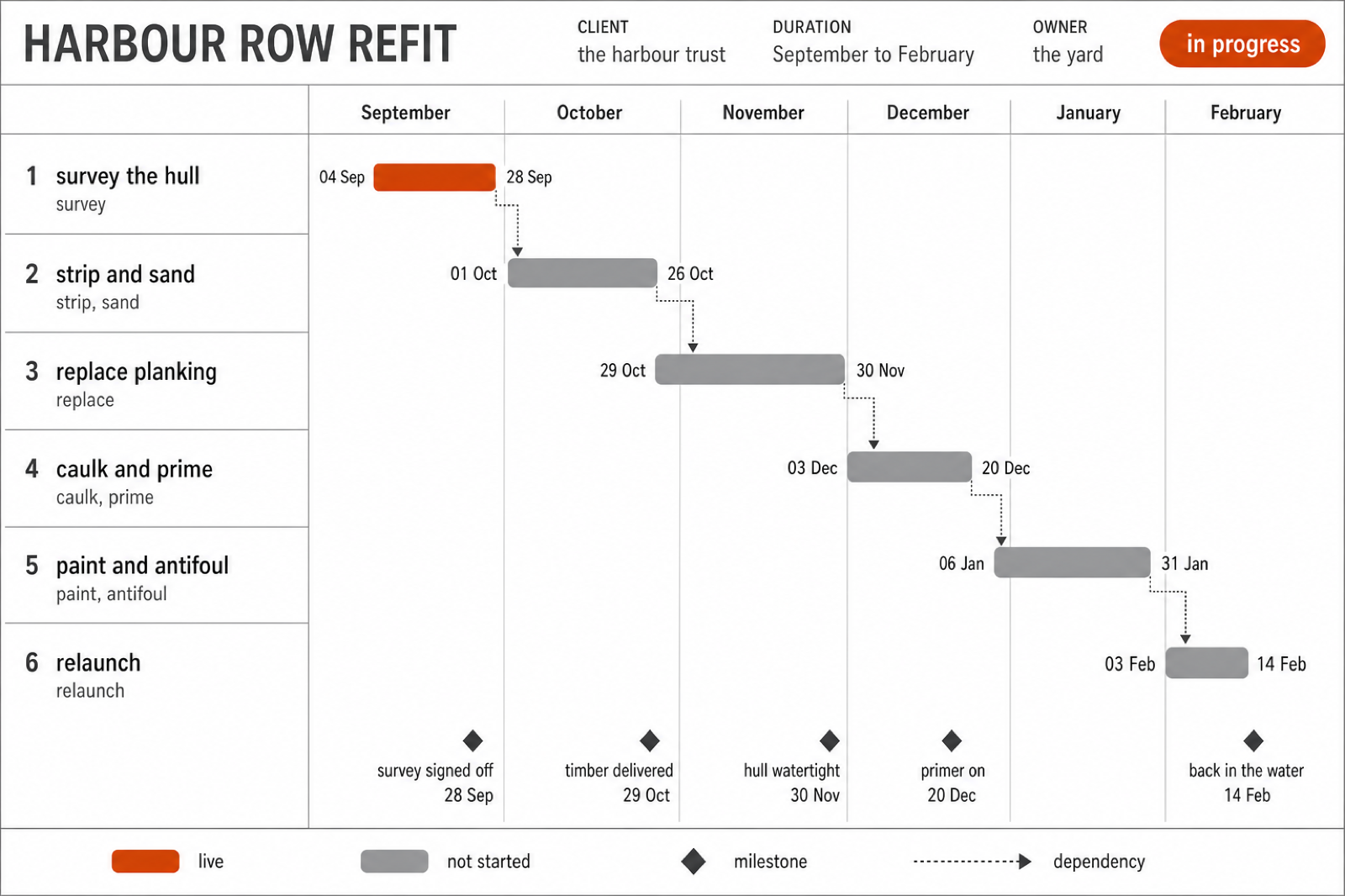

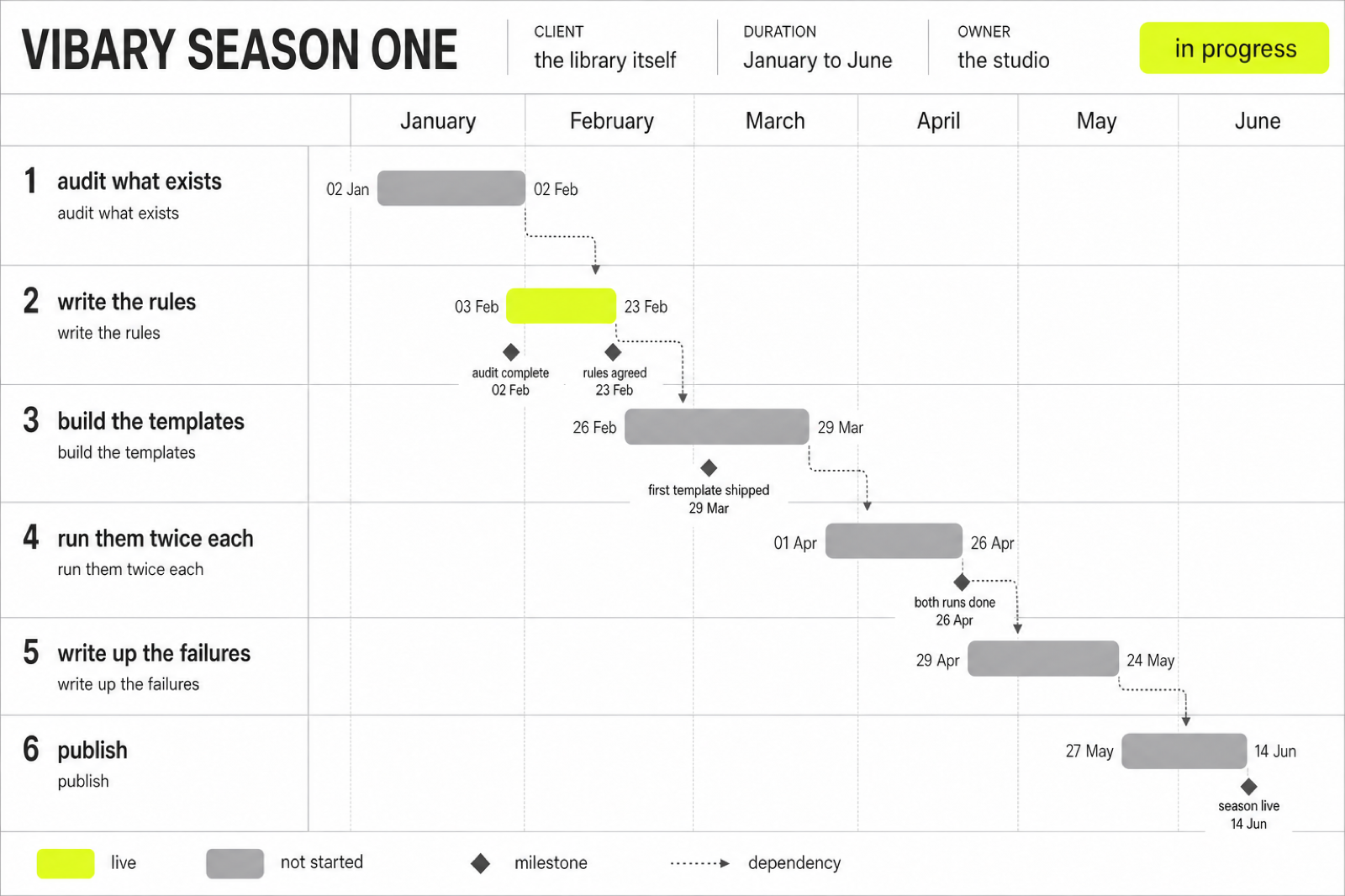

Two runs of the same template. A season of library work beside a winter boat refit — six tasks each, one live, dependencies running forward only. The refit places its milestones in a single lane along the foot rather than beside their bars, which is a real scheduling convention and a legitimate divergence from the first run.
Generated from this template with the fields shown above, and measured rather than eyeballed: against a month width of 189 pixels, the twelve bar edges land a mean of 25 pixels from their true dates — about four days. Every bar falls in its correct month except two starts that cross a boundary by roughly two and four days. That is a substantial improvement on the reference's baseline, which printed its dates neatly at every bar end and then drew the bars wherever they balanced, putting a task beginning on the third of February inside January and one beginning on the twenty-ninth of April in the middle of the month. The labels were right and the chart was wrong, which is worse than either alone because a reader trusts the picture over the caption. Recorded as a partial pass: the geometry is close but not exact, and a schedule read to the day would still want checking against the dates.
Generated for this library
Input
Header BAKERY REBRAND · a family bakery · January to June
· the studio · in progress
Axis six columns, January to June
Tasks 1 research 02 Jan-02 Feb · 2 naming 03 Feb-23 Feb ·
3 identity 26 Feb-29 Mar · 4 packaging 01 Apr-26
Apr · 5 in-store 29 Apr-24 May · 6 launch 27 May-14
Jun
Depends each waits on the one before it
Stones report 02 Feb · name agreed 23 Feb · identity 29
Mar · packaging 26 Apr · launch 14 Jun
Palette white and pale grey, one fluorescent yellow
Returned 1 chart · 3:2 · white, grey bars, yellow for live
axis six month columns, ruled, evenly divided
bars each starting and ending under its own dates - the
naming bar begins inside February, not January
depends dotted elbows from each bar's end to the next bar's
start, none running backwards
stones small diamonds sitting on their exact dates, each
labelled beneath
legend live, not started, milestone, dependencyYou fill in 6 fields — the braced lines at the top. Everything below them is fixed.
